10GBASE DWDM SFP+ 10Gb/s C17-C61 100GHz 80km DOM LC SMF Module Transceiver

DWDM SFP+-10G C17-C61 80KM
Price:
$400.00
    Please select the information you wantX
  • Model:
    Commercial grade: 0 to 70 degree
    Industry grade: -40 to +85 degree
  • Compatible:
    Generic
    Customized
    CISCO
    Arista
    Brocade
    HP
    Dell
    Extreme
    H3C
    Huawei
    Juniper
  • Wavelength:
    C17
    C18
    C19
    C20
    C21
    C22
    C23
    C24
    C25
    C26
    C27
    C28
    C29
    C30
    C31
    C32
    C33
    C34
    C35
    C36
    C37
    C38
    C39
    C40
    C41
    C42
    C43
    C44
    C45
    C46
    C47
    C48
    C49
    C50
    C51
    C52
    C53
    C54
    C55
    C56
    C57
    C58
    C59
    C60
    C61
Quantity:
-
+
(99000 Available )
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

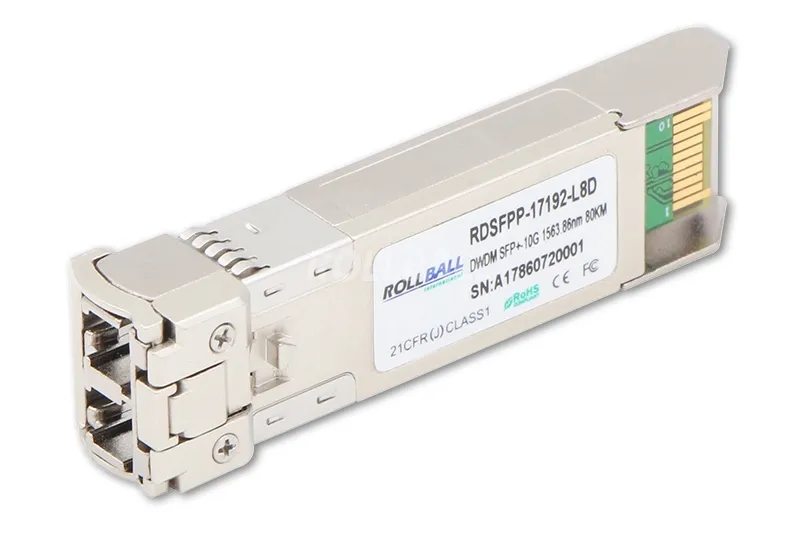

Rollball 10Gb/s DWDM SFP C17-C61 80km DDM Module



Item Specifications

Part Number

RDSFPP-XX192-L8D

Brand Name Rollball
Form type SFP+   Max Data Rate 10Gb/s
Max Cable Distance 80KM Wavelength

1528.77-1563.86nm

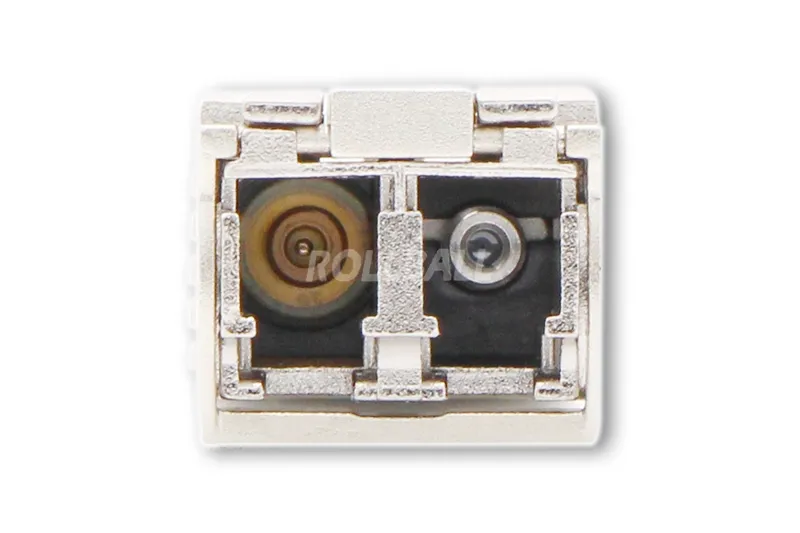

Cable Type SMF Fiber connector LC Duplex
Optical Components EML DWDM Operate Temperature 0 to 70°C (32 to 158°F)
TX Power 0~5.0dB Receiver Sensitivity <-24dB
Certificates CE,ROHS,FCC,SGS DOM Support Yes



Applications:

 10GBASE-ER
 10G Fiber Channel



Product Description

 This SFP+-ZR DWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 80km.
 The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.





DWDM C-band λc Wavelength Guide

ITU Channel Frequency(THz) Wavelength ITU Channel Frequency(THz) Wavelength
17 191.7 1563.86 40 194.0 1545.32
18 191.8 1563.05 41 194.1 1544.53
19 191.9 1562.23 42 194.2 1543.73
20 192.0 1561.42 43 194.3 1542.94
21 192.1 1560.61 44 194.4 1542.14
22 192.2 1559.79 45 194.5 1541.35
23 192.3 1558.98 46 194.6 1540.56
24 192.4 1558.17 47 194.7 1539.77
25 192.5 1557.36 48 194.8 1538.98
26 192.6 1556.55 49 194.9 1538.19
27 192.7 1555.75 50 195.0 1537.40
28 192.8 1554.94 51 195.1 1536.61
29 192.9 1554.13 52 195.2 1535.82
30 193.0 1553.33 53 195.3 1535.04
31 193.1 1552.52 54 195.4 1534.25
32 193.2 1551.72 55 195.5 1533.47
33 193.3 1550.92 56 195.6 1532.68
34 193.4 1550.12 57 195.7 1531.90
35 193.5 1549.32 58 195.8 1531.12
36 193.6 1548.51 59 195.9 1530.33
37 193.7 1547.72 60 196.0 1529.55
38 193.8 1546.92 61 196.1 1528.77
39 193.9 1546.12
